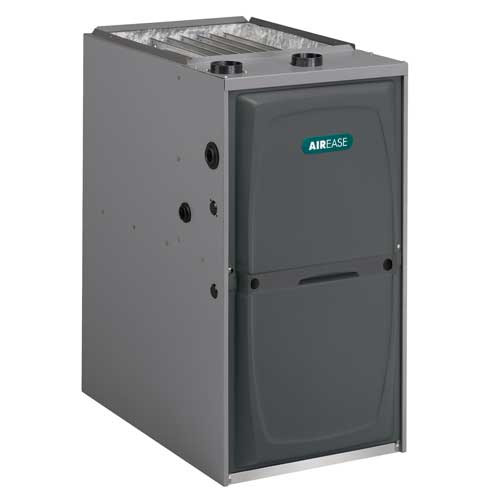

A951S 95% Gas Furnace With Stainless Steel Heat Exchanger
During times of extreme cold weather' when you depend on your furnace most' you can rely on the AirEase® A951S to deliver the warmth and efficiency you need. That’s because it’s built on 80 years of expertise' testing and research. Quality crafted using proven technology' the A951S is a furnace you can choose confidently for years of exceptional operation and energy savings.
- 95% AFUE This means 95% of your fuel is converted into usable heat. Compared to an older furnace' this can potentially save you hundreds of dollars per year in energy costs.
- Quiet Combustion Technology Uses a smaller Btu input per burner for quieter start-up and operation while providing more even heat distribution.
- Advanced Heat Exchanger Made from stainless steel for maximum strength and crimped' rather than welded' AirEase heat exchangers are highly resistant to thermal fatigue and other stresses caused by repeated heating and cooling. During the testing process' they are subjected to temperatures that far exceed normal operating ranges' to ensure they will stand up to years of use.
- EHX Technology Every AirEase furnace is engineered and built with EHX Technology' a patented design that eliminates the hot spots that can shorten furnace life. EHX Technology makes heat exchangers more durable' and with its advanced airflow system' more air contacts the heat exchanger surface area for greater heat exchange' enhancing efficiency and comfort.
|MODEL||Configuration||Input MBtuH||Output MBtuH||AFUE||CFM||Dimensions|
|A95UH1D045B08||Upflow / Hor. ||44.0 ||41.0 ||95.0 ||1125 ||33x17.5x28.5 ||121 |
|A95UH1D045B12||Upflow / Hor. ||44.0 ||42.0 ||95.0 ||1550 ||33x17.5x28.5 ||123 |
|A95UH1D070B12||Upflow / Hor. ||66.0 ||64.0 ||95.0 ||1515 ||33x17.5x28.5 ||128 |
|A95UH1D090C12||Upflow / Hor. ||88.0 ||95.0 ||95.0 ||1580 ||33x21x28.5 ||145 |
|A95UH1D090C16||Upflow / Hor. ||88.0 ||86.0 ||95.0 ||2060 ||33x21x28.5 ||148 |
|A95UH1D110C16||Upflow / Hor. ||110.0 ||106.0 ||95.0 ||1940 ||33x21x28.5 ||157 |
|A95UH1D110C20||Upflow / Hor. ||106.0 ||106.0 ||98.0 ||2265 ||33x21x28.5 ||163 |
|A95UH1D135D20||Upflow / Hor. ||132.0 ||126.0 ||95.0 ||2350 ||33x21x28.5 ||180 |
|A95DF1D045B12||Downflow ||44.0 ||42.0 ||95.0 ||1500 ||33x17.5x28.5 ||125 |
|A95DF1D070B12||Downflow ||66.0 ||64.0 ||95.0 ||1445 ||33x17.5x28.5 ||129 |
|A95DF1D090C20||Downflow ||88.0 ||85.0 ||95.0 ||2200 ||33x21x28.5 ||140 |
|A95DF1D110C20||Downflow ||110.0 ||106.0 ||95.0 ||2275 ||33x21x28.5 ||165 |290-11828.pdf
- All Parts
for 120 months -
- Heat Exchanger - Limited Lifetime
(Specification Sheet, Technical Information)
